AJAX

aka Asynchronous JavaScript and XML

What is AJAX? AJAX stands for Asynchronous JavaScript and XML. Huh? Well, here’s the deal. All web pages are delivered synchronously. That means that you cannot do two things at the same. Or at least you weren’t able to before AJAX came along. Once AJAX arrived, it allowed us to send a request to the server, and while processing that request and a response sent back, the end-user can continue to work on the web page. AJAX prevents the white screen of nothingness from happening, especially when you are trying to bring in large datasets.

So, what are some of the benefits of AJAX in a more defined way? W3Schools define them at this:

Update a web page without reloading the page
Request data from a server - after the page has loaded
Receive data from a server - after the page has loaded
Send data to a server - in the background

The points above are important because they increase page responsiveness, and end-users are happy because of it!

What do these requests look like? Here is an example:

<script>
function loadDoc() {
  var xhttp = new XMLHttpRequest();
  xhttp.onreadystatechange = function() {
    if (this.readyState == 4 && this.status == 200) {
     document.getElementById("demo").innerHTML = this.responseText;
    }
  };
  xhttp.open("GET", "bikeInfo.txt", true);
  xhttp.send();
}
</script>

The above script creates the XMLHttpRequest object, and then it tries to open the bikeInfo.txt page. It sends the request to open the page, and the response reads and displays the data. In the background, the onreadstatechange verifies the completion of the readyState, and a response is ready with the status set to OK. That is what the 4 and the 200 are. Then JavaScript assigns the response to the innerHTML of the div tag.

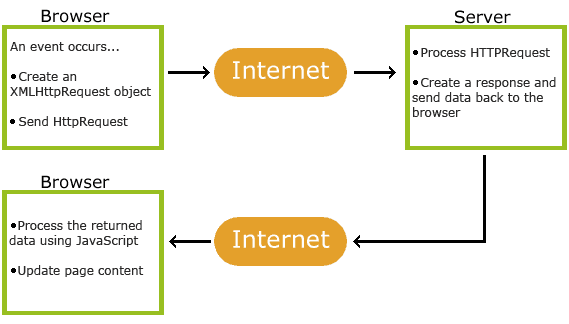

Here is a graphic of how it works from client to server and back.

Example of AJAX

Let’s look at a full example - remember, you will need a bikeInfo.txt in the same directory to see this work.

<!DOCTYPE html>
<html>

<head>
    <script>

        function showBikeInfo() {
            var xhttp = new XMLHttpRequest();
            xhttp.onreadystatechange = function() {
                if (this.readyState == 4 && this.status == 200) {
                document.getElementById("bikeInformation").innerHTML = this.responseText;
                }
            };
            xhttp.open("GET", "bikeInfo.txt", true);
            xhttp.send();
        }
    </script>

    </head>

    <body>
        <div id="bikeInformation"></div>
        <button id="btnSubmit" onclick="showBikeInfo();">Show Information</button>
    </body>
</html>

To run this example, you will want to run it in Firefox, as Chrome will throw a cross-origin exception.

Keep in mind other messages are returned as well for readyState:

readyState

0: request not initialized
1: server connection established
2: request received
3: processing request
4: request finished, and response is ready

status returns the status-number of a request

200: “OK”
403: “Forbidden”
404: “Not Found”

AJAX can read all different types of files. We can access server files where the data returned is formatted as XML. XML files are fairly straightforward as they describe the data with their tags, and they don’t display anything. Here is an example of some XML:

<CATALOG>
    <CD>
        <TITLE>Empire Burlesque</TITLE>
        <ARTIST>Bob Dylan</ARTIST>
        <COUNTRY>USA</COUNTRY>
        <COMPANY>Columbia</COMPANY>
        <PRICE>10.90</PRICE>
        <YEAR>1985</YEAR>
    </CD>
    <CD>
        <TITLE>Hide your heart</TITLE>
        <ARTIST>Bonnie Tyler</ARTIST>
        <COUNTRY>UK</COUNTRY>
        <COMPANY>CBS Records</COMPANY>
        <PRICE>9.90</PRICE>
        <YEAR>1988</YEAR>
    </CD>
</CATALOG>

The previous XML example shows information about music albums. So, how does AJAX access this?

Here is an example:

<!DOCTYPE html>
<html>

<head>
    <meta charset="UTF-8">
    <style>
        table,
        th,
        td {
            border: 1px solid black;
            border-collapse: collapse;
        }

        th,
        td {
            padding: 5px;
        }
    </style>
    <script>
        function loadDoc() {
            var xhttp = new XMLHttpRequest();
            xhttp.onreadystatechange = function () {
                if (this.readyState == 4 && this.status == 200) {
                    showCatalogInfo(this);
                }
            };
            xhttp.open("GET", "catalog.xml", true);
            xhttp.send();
        }

        function showCatalogInfo(xml) {
            var i;
            var xmlDoc = xml.responseXML;
            var table = "<tr><th>Title</th><th>Artist</th></tr>";
            var x = xmlDoc.getElementsByTagName("CD");
            for (i = 0; i < x.length; i++) {
                table += "<tr><td>" +
                    x[i].getElementsByTagName("TITLE")[0].childNodes[0].nodeValue +
                    "</td><td>" +
                    x[i].getElementsByTagName("ARTIST")[0].childNodes[0].nodeValue +
                    "</td></tr>";
            }
            document.getElementById("catalogInformation").innerHTML = table;
        }
    </script>
</head>

<body>
        <table id="catalogInformation"></table>
    <button id="btnSubmit" onclick="loadDoc();">Show Information</button>
</body>

</html>

If you look at the for loop, it adds the title and artist to the table and displays it with each row added to the table.

We can also read in a file that has JSON in it, and then display the information as we did before.

It would look something like this:

<!DOCTYPE html>
<html>

<head>
    <script>

        function showBikeInfo() {
            var xhttp = new XMLHttpRequest();
            xhttp.onreadystatechange = function() {
                if (this.readyState == 4 && this.status == 200) {
                var bike = JSON.parse(this.responseText);
                document.getElementById("bikeInformation").innerHTML = "Manufacturer: " + bike.manufacturer
                + "<br>Model:" + bike.model + "<br>First Name:" + bike.owner.firstName + "<br>Last Name:"
                + bike.owner.lastName + "<br>Sizes Available:<br>" +
                bike.sizes[0] + "<br>" + bike.sizes[1] + "<br>" + bike.sizes[2] + "<br>" + bike.sizes[3];
                }
            };
            xhttp.open("GET", "bike.json", true);
            xhttp.send();
        }
</script>

    </head>

    <body>
        <div id="bikeInformation"></div>
        <button id="btnSubmit" onclick="showBikeInfo();">Show Information</button>
    </body>
</html>

Now, the responseText is returning a JSON object just like one would receive from a server or some other data source. We can assign it to an object and then access the properties. So, how is this all done in JQuery?
